Slowly Changing Dimension Transformation

The Slowly Changing Dimension transformation coordinates the updating and inserting of records in data warehouse dimension tables.

The Slowly Changing Dimension transformation provides the following functionality for managing slowly changing dimensions:

·         Matching incoming rows with rows in the lookup table to identify new and existing rows.

·         Identifying incoming rows that contain changes when changes are not permitted.

·         Identifying inferred member records that require updating.

·         Identifying incoming rows that contain historical changes that require insertion of new records and the updating of expired records.

·         Detecting incoming rows that contain changes that require the updating of existing records, including expired ones.

The Slowly Changing Dimension transformation supports four types of changes: changing attribute, historical attribute, fixed attribute, and inferred member.

·         Changing attribute changes overwrite existing records. This kind of change is equivalent to a Type 1 change. The Slowly Changing Dimension transformation directs these rows to an output named Changing Attributes Updates Output.

·         Historical attribute changes create new records instead of updating existing ones. The only change that is permitted in an existing record is an update to a column that indicates whether the record is current or expired. This kind of change is equivalent to a Type 2 change. The Slowly Changing Dimension transformation directs these rows to two outputs: Historical Attribute Inserts Output and New Output.

·         Fixed attribute changes indicate the column value must not change. The Slowly Changing Dimension transformation detects changes and can direct the rows with changes to an output named Fixed Attribute Output.

·         Inferred member indicates that the row is an inferred member record in the dimension table. An inferred member exists when a fact table references a dimension member that is not yet loaded. A minimal inferred-member record is created in anticipation of relevant dimension data, which is provided in a subsequent loading of the dimension data. The Slowly Changing Dimension transformation directs these rows to an output named Inferred Member Updates. When data for the inferred member is loaded, you can update the existing record rather than create a new one.

I have created two tables one Test_Stage(Which I am using as Staging table) and another one is Test(Which I am using as Main table) with the following syntax. You can clearly see that Main table is having TWO Extra columns to track history.

Create table Test_Stage

(

Emp_Id int,

Emp_Name Varchar(100),

Country Varchar(100)

);

insert into Test_Stage

values('1','Balu','India');

Insert into Test_Stage

values('2','Ranga','UK');

insert into Test_Stage

values('3','Rayudu','USA');

insert into Test_Stage

values('4','Mani','UAE');

insert into Test_Stage

values('5','Sarath','Pak');

Create table Test

(

Emp_Id int,

Emp_Name Varchar(100),

Country Varchar(100),

Start_Date Datetime,

End_Date DateTime

);

Step 1:

Take a Data Flow Task and edit it.

Step 2:

Take OLE DB source and edit it and take Data Base as BALU.

Step 3:

Take table as [dbo].[Test_Stage].

Step 4:

Take Slowly Changing Dimension transformation and edit it.

Step 5:

Select the dimension table (in our case it is “Test”) and Keys under “Select Dimension Table and Keys” page as shown below.

Step 6:

In the above screenshot we can see that for Country attribute I selected “Historical Attribute” as I wish to track the historical changes for that attribute and hence whenever there is a change in that particular attribute column value then only it tracks history by creating a new record and for other attribute Emp_Name, it will directly apply UPDATE on the table.

Step 7:

Under “Historical Attributes Option” page select “Use Start and End date to identify current and expired records” option and by selecting start date column and End date column

Step 8:

Once you click on Finish, SSIS server creates all the functionality that is required to implement SCD Type 1 based on the information provided by us. It will add Data flow tasks for Inserting new records and updating existing records as shown below.

Step 9:

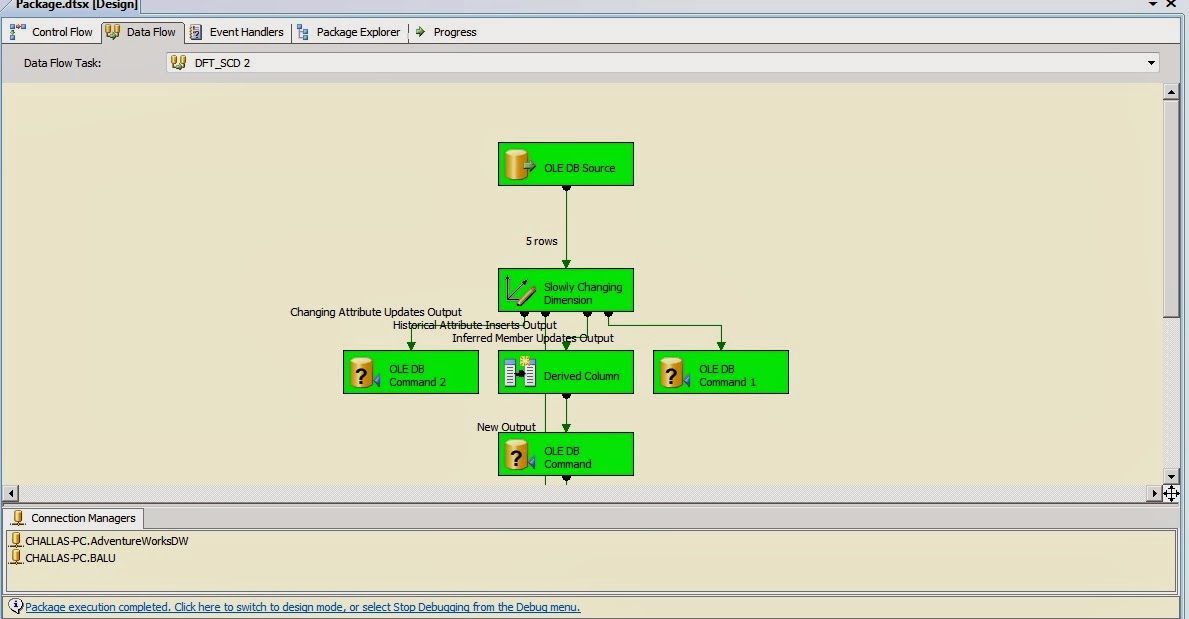

I run the package then it will check for newly added records and inserts those records and updates the already existing records if there is any change in data. As there is NO RECORDS in TEST table in this run it will load all the records under New Insert as shown below.

Step 10:

Now if you run the queries you can see the data updated in TEST table.
